Equipment & Machinery
Manual Paint Dispensers
Manual Paint Dispensers are precision tools used for accurately measuring and dispensing different paint colors and coatings. They help ensure consistent color mixing by controlling the quantity of pigments added, making them ideal for paint stores, workshops, and coating industries.

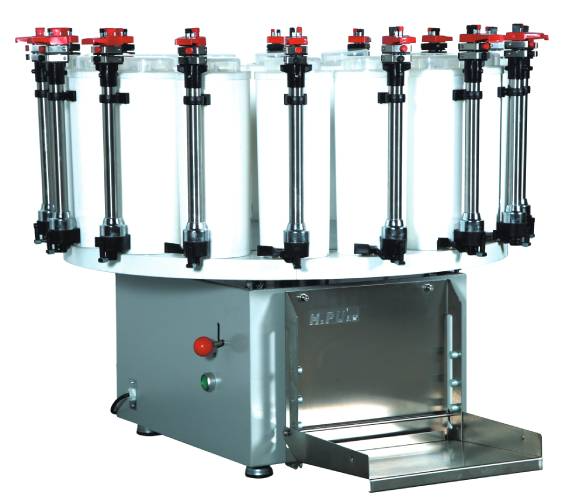

Model: TS216C

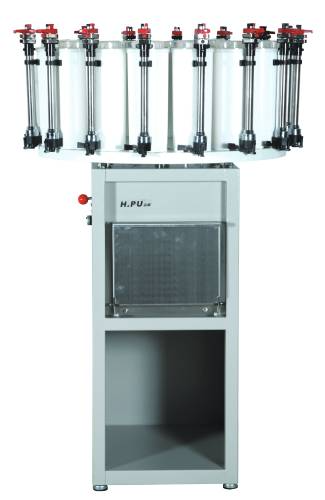

Model: TS216-F
TS Manual dispenser
These dispensers are characterized by high precision and reliability. They are available in 12, 14, 16 and 21 canisters configurations in both floor stand and countertop versions.
Pucher and different voltage operation are optional.
Common features
Compatible with water based or universal colorants
Canister real capacity of 2 liters/quarts
2 Ounces (60 ml) stainless steel piston pumps
Automatic colorant mixing (5 min every 6 hours, factory adjustable)
Max. power consumption 40 W
Working temperature from 10° to 40°
Relative humidity from 5% to 85% (not condensing)
Dispensing unit
TS-2XX in mL or 1/48 fl oz, precision up to 1/384 fl oz
TS-1XX in 1/48 fl oz divided in 1/96 fl oz
Options
12, 14, 16 and 21 canisters configurations
Floor stand (TS-XXXF) or countertop (TS-XXXC) bodies
Manual can puncher (takes one canister position)
110 V 60 Hz or 220V 50 Hz power settings
Custom body colors
White or black canister body
Electronic scale (0.01 or 0.001 grams) for calibration
Container handling
Maximum can height 420 mm (floor stand), 280 mm (countertop)
Maximum can base diameter 300 mm
TS-XXXF Dimensions and shipping (16 canisters floor stand)
Size (H, W, D) 1330 x 860 x 860 mm
Weight 68 Kg (150 lb.)
Cardboard boxes standard packaging, wood crate is optional
Shipping size (H, W, D) 870 x 1050 x 580 mm
Shipping weight 88 Kg (194 lb.)
TS-XXXC Dimensions and shipping (16 canisters countertop)
Size (H, W, D) 700 x 860 x 860 mm
Weight 60 Kg (132 lb.)
Cardboard boxes standard packaging, wood crate is optional
Shipping size (H, W, D) 850 x 840 x 560 mm
Shipping weight 75 Kg (165 lb.)
